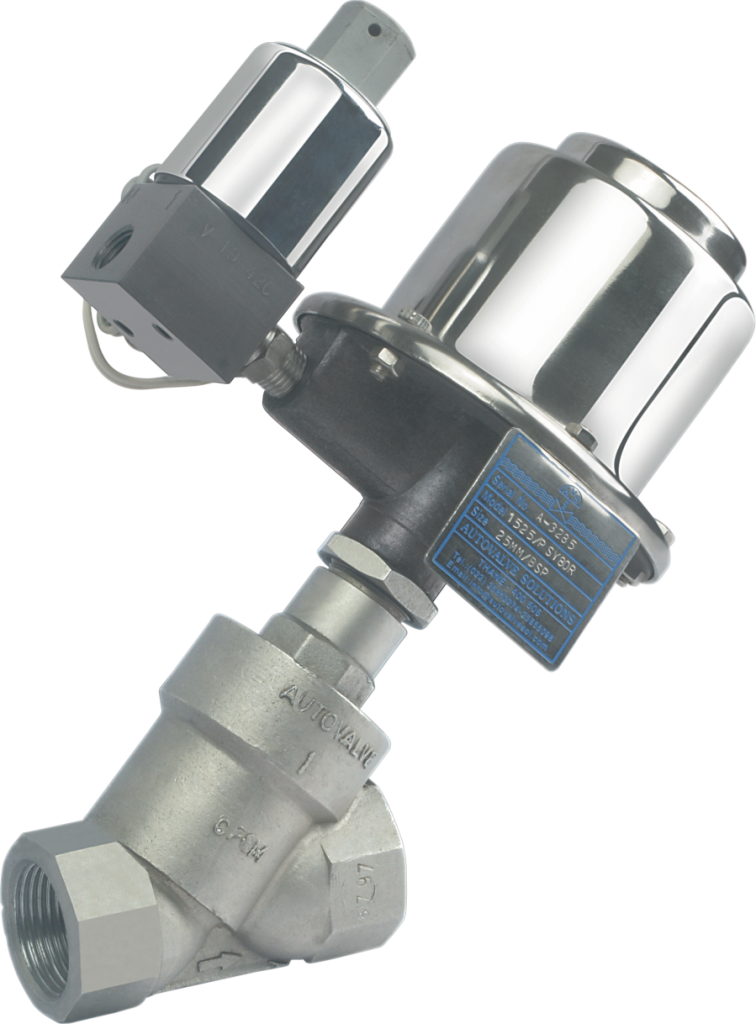

Y Type Angle Valve

SPECIFICATION
  • Valve Size: ½” (15 mm) to 2″ (50 mm).
  • Rating: ANSI 150.
  • Temperature: -10°C to 180°C.
  • Max. Pressure : 16 BAR
  • End Connection: Screwed, Flanged, Triclover (Special on Request)
  • Body / Bonnet : Investment Casting ASTM A 351 Gr . CF8 / CF8M.
  • Gland Packing: Self adjusting, spring loaded Teflon packing.
  • T rim Materials: SS 316
  • Seat-Seal : PTFE / Metal Seated VITON / EPDM, Buna Nitrile
  • Characteristics: On / Off
  • Seat Leakage : As per FCI-70-2 Class IV, V and VI Metal to Soft Seating-Bubble tight (Zero Leakage)
  • Actuator Type : Piston
  • Actuator Action: Direct / Reverse / Double Acting
  • Direct acting air failure “Opens”
  • Reverse acting air failure “Closes”
  • Double Acting air failure “Stayput”
