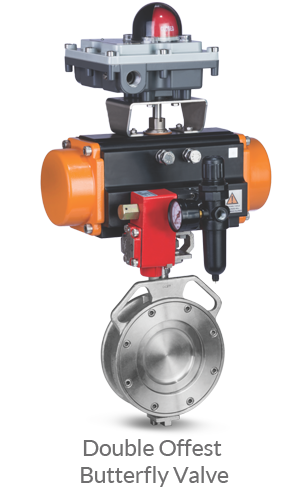

Offset Butterfly Valve

FEATURES

• Bi Directional zero leakage Butterfly Valve
• An Extremely negligible backlash between Stem & disc due to square drive.

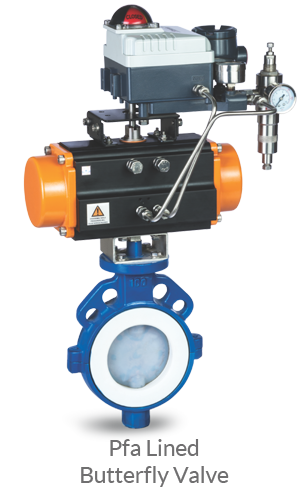

• Butterfly Valves (Lined) are designed to fit without gaskets between flanges drilled to ANSI 125 #, ANSI 150#,DIN., ND 10, 16, BS 10 Table D, E and F.
• 100% Factory tested under Water /Air / Vacuum before the valve is Packed and shipped.
• 360° Disc Rotation.

SPECIFICATION

• Valve Size: 1 ½” (40 mm) to 36″ (900 mm)
• Rating: ANSI / BS 125# / 150#.
• Design: Centric Disc, Single to Triple Offset Disc Fully Lined & Unlined Body.
• End Connection: Wafer, Lugged & Double Flanged.
• Operation: Pneumatic.
• Port Opening: Full.
• Seat: Nitrile EPDM / Neoprene / Silicon /Viton etc.
• Disc: Solid Dual Shaft / Single Shaft.
• Design Code: API – 609 / BS – 5155.
• Testing: API 598
