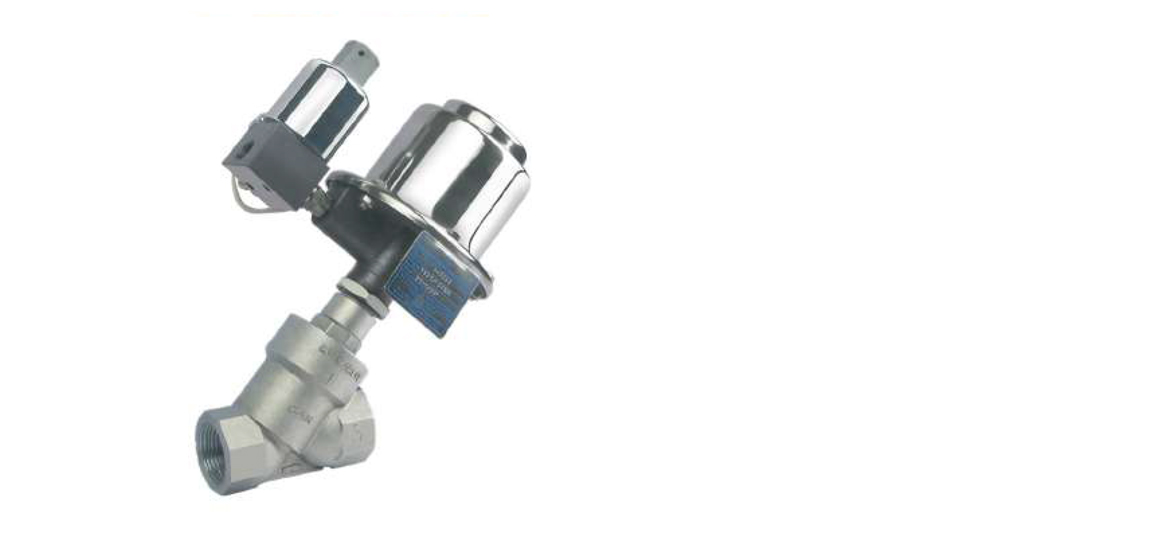

Y Type Angle Valve

• Valve Size: ½” (15 mm) to 2″ (50 mm).
• Rating: ANSI 150
• Temperature: -10°C to 180°C.
• Max. Pressure : 16 BAR
• End Connection: Screwed, Flanged, Triclover (Special on Request)
• Body / Bonnet : Investment Casting ASTM A 351 Gr . CF8 / CF8M.
• Gland Packing: Self adjusting, spring loaded Teflon packing.
• T rim Materials: SS 316
• Seat-Seal : PTFE / Metal Seated VITON / EPDM, Buna Nitrile
• Characteristics: On / Off
• Seat Leakage : As per FCI-70-2 Class IV, V and VI Metal to Soft Seating-Bubble tight (Zero Leakage)
• Actuator Type : Piston
• Actuator Action: Direct / Reverse / Double Acting
• Direct acting air failure “Opens”
• Reverse acting air failure “Closes”
• Double Acting air failure “Stayput”
