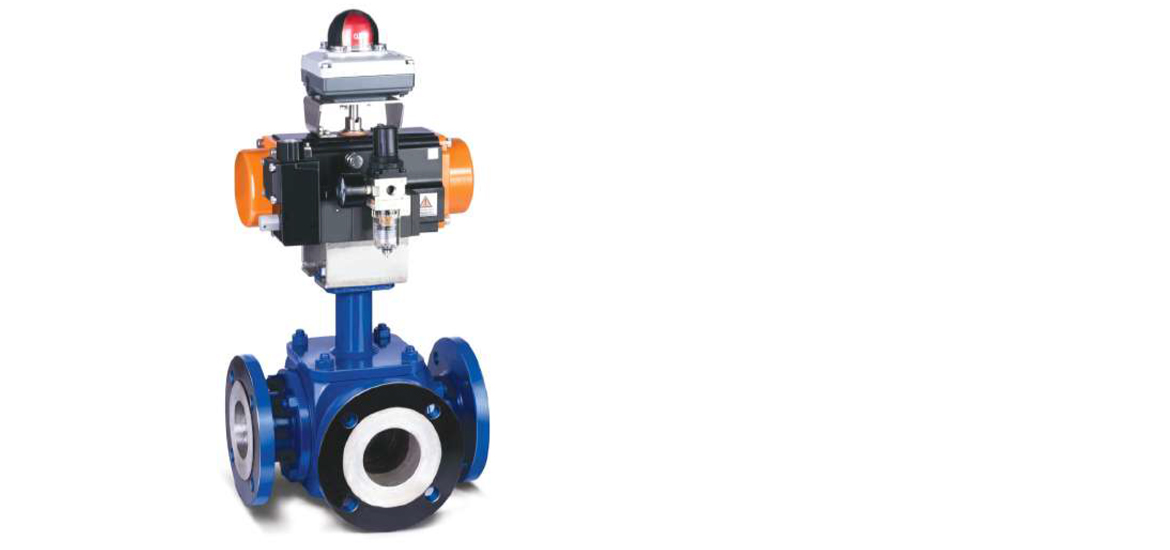

3 Way Ball Valve with Rotary Actuator
- Three Way Ball Valve is available in either “L” Port or “T” Port.

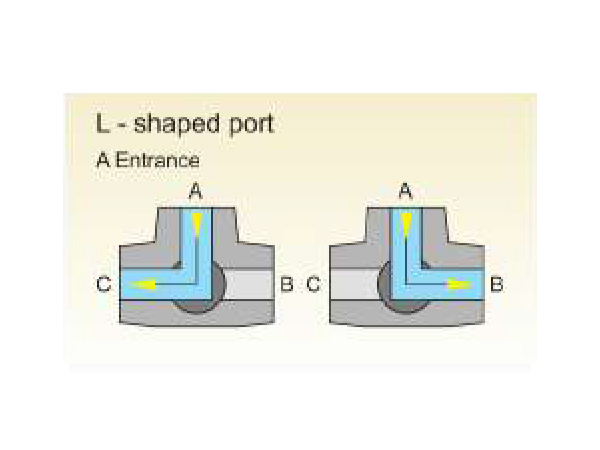

- “L” Port Three Way Ball Valve is used for pipelines to switch the flow direction of two-flow lines perpendicular with each other.

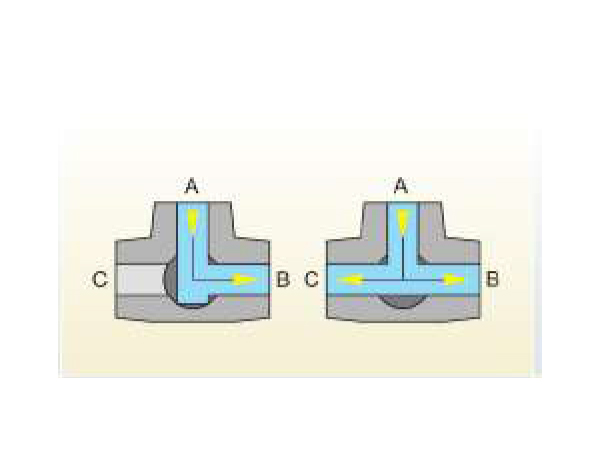

- “T” Port Three Way Ball Valve is used for diverting, mixing or switching the flow direction.
- Ball passage is able to switch on three flow lines or switch on two of the three flow lines.
- Four Seats for equal seat loading.
- Gland Packing, Seals & Spring Washers for zero leakage from gland.
- Interface: ISO 5211.
- Body MOC : CS, CF8, CF8M.
- Trim MOC : CF8, CF8M.
- Seat MOC : PTFE, GFT, PEEK (Special on Request).
- Size: 1″ (25mm) to 8″ (200mm).

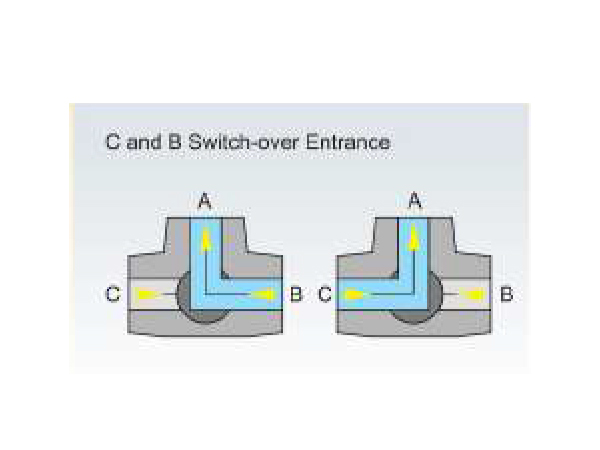

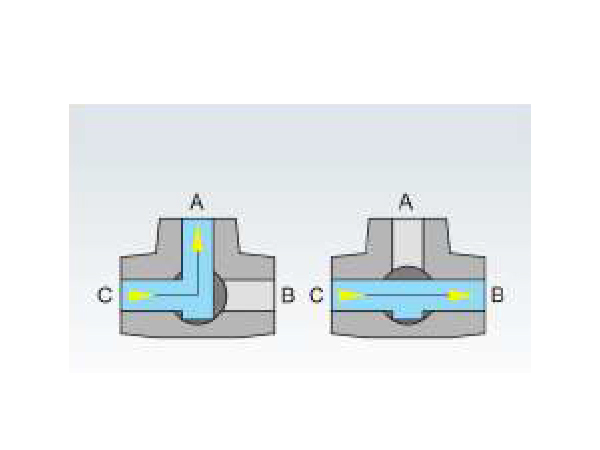

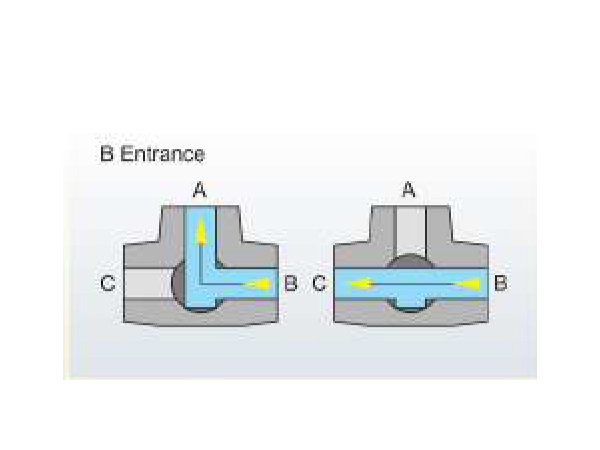

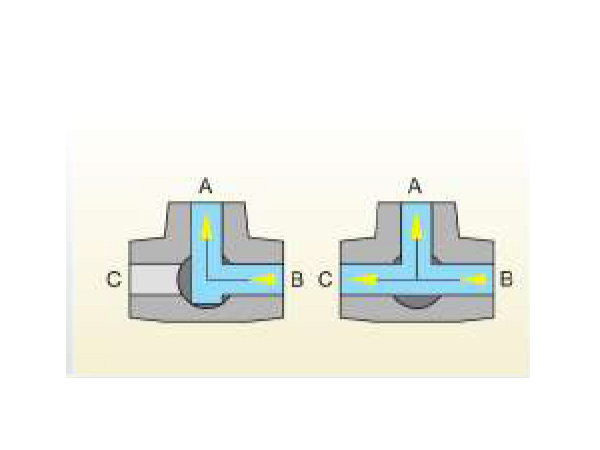

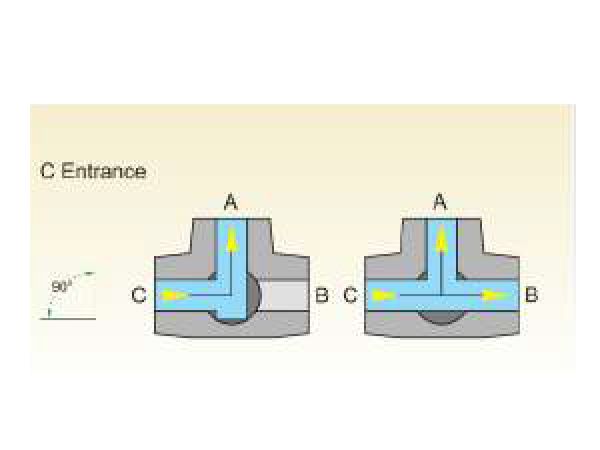

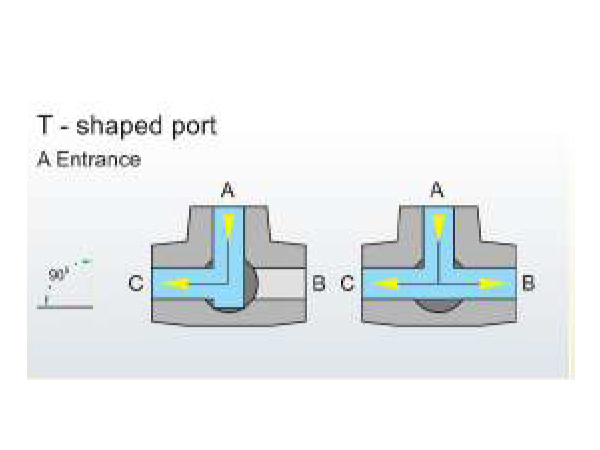

Types of 3 – Way Ball Valves Flow Directions
