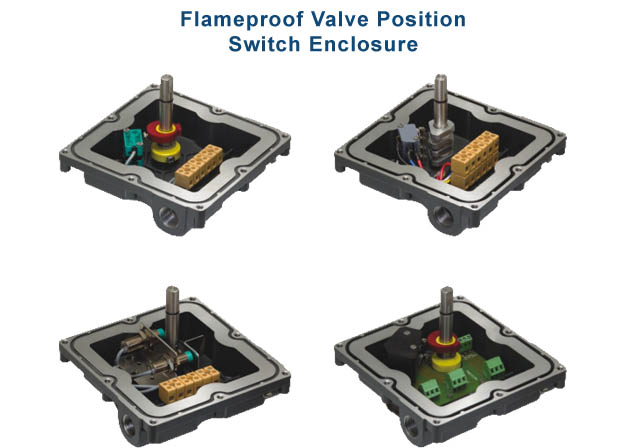

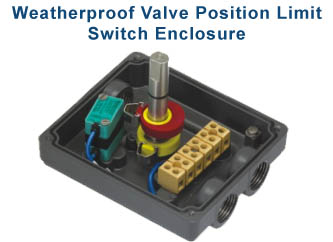

Limit Switch Enclosure(Weatherproof & Flameproof Valve Position)

• Signaling options in a compact corrosion resistant aluminium alloy housing.
• Represent a true indication of valve position.
• Infinitively adjustable and delivers 100% chane of indication.
• Displaying 90°of rotation by utilizing an amplified mechanical drive.

FEATURES

• Rigid & compact design body constructed from aluminium alloy die casting capable of operating even in ardous conditions.
• Dome position indicator constructed from high import resistance poly carbonate material which offers instant visual recognition.
• The locked serrated easy to adjust, spring loaded cam ensures easy setting with tool.
• Three cable entries are provided as a standard.
• Complies with NAMUR mounting standard.
• Range of mounting accessories having the compatibility with the various actuators available.
• Temperature range -20°C +80°C, offer range available on request.

MOUNTING

• Interface: ISO 5211.
• Two different designs available Fix bracket / Adjustable bracket.
